GNSS Correction Signal : Match the exact level of precision that you need

STEYR offers a number of corrections with four types of delivery so you can choose what is best for your operation.

Accuracy levels

Customise your precision farming technology exactly to your needs and objectives.

GNSS Correction Signal and Receivers Overview


EGNOSS-TECH 1S-TECH 3RTK+

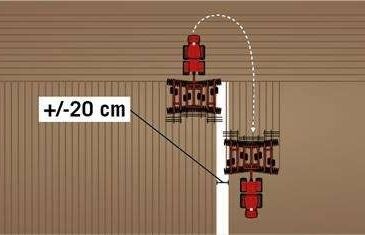

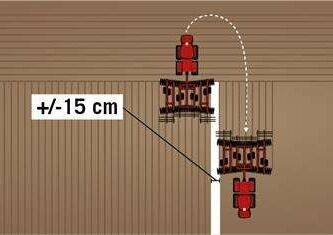

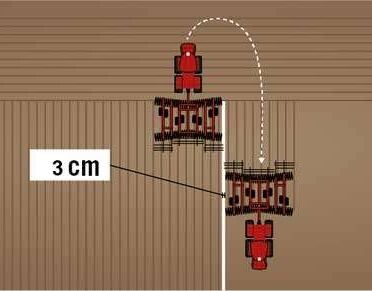

Pass to pass20 cm15 cm3 cm 1,5 cm
Repeatable1 m18 cm3-5 cm 1,5 cm
DeliverySatelliteSatelliteSatelliteCellular
Convergence< 1min< 5 min
<18 min< 1 min
Constellation  of GNSS / SatellitesGPSGPS + GLONASSGPS + GLONASS
 GALILEAO + BEIDOU		GPS + GLONASS
 GALILEAO + BEIDOU

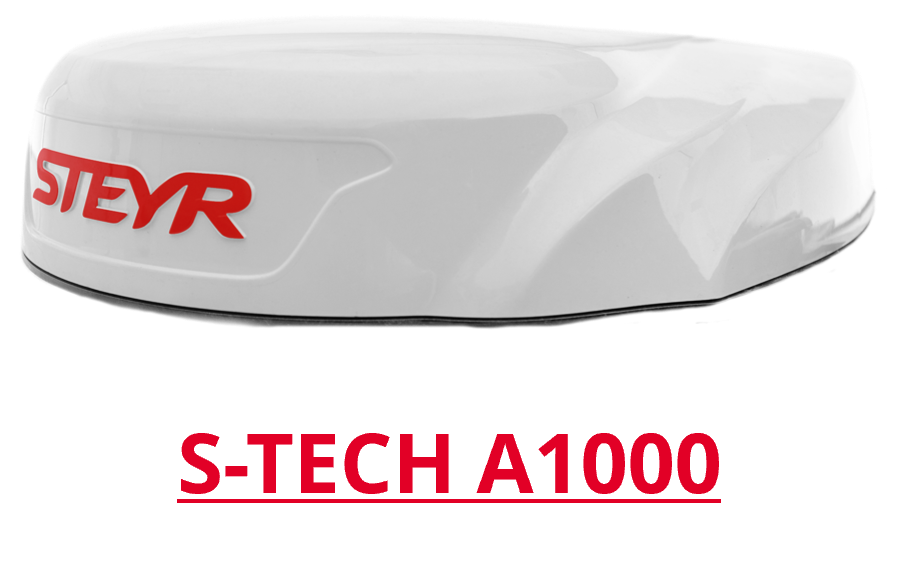

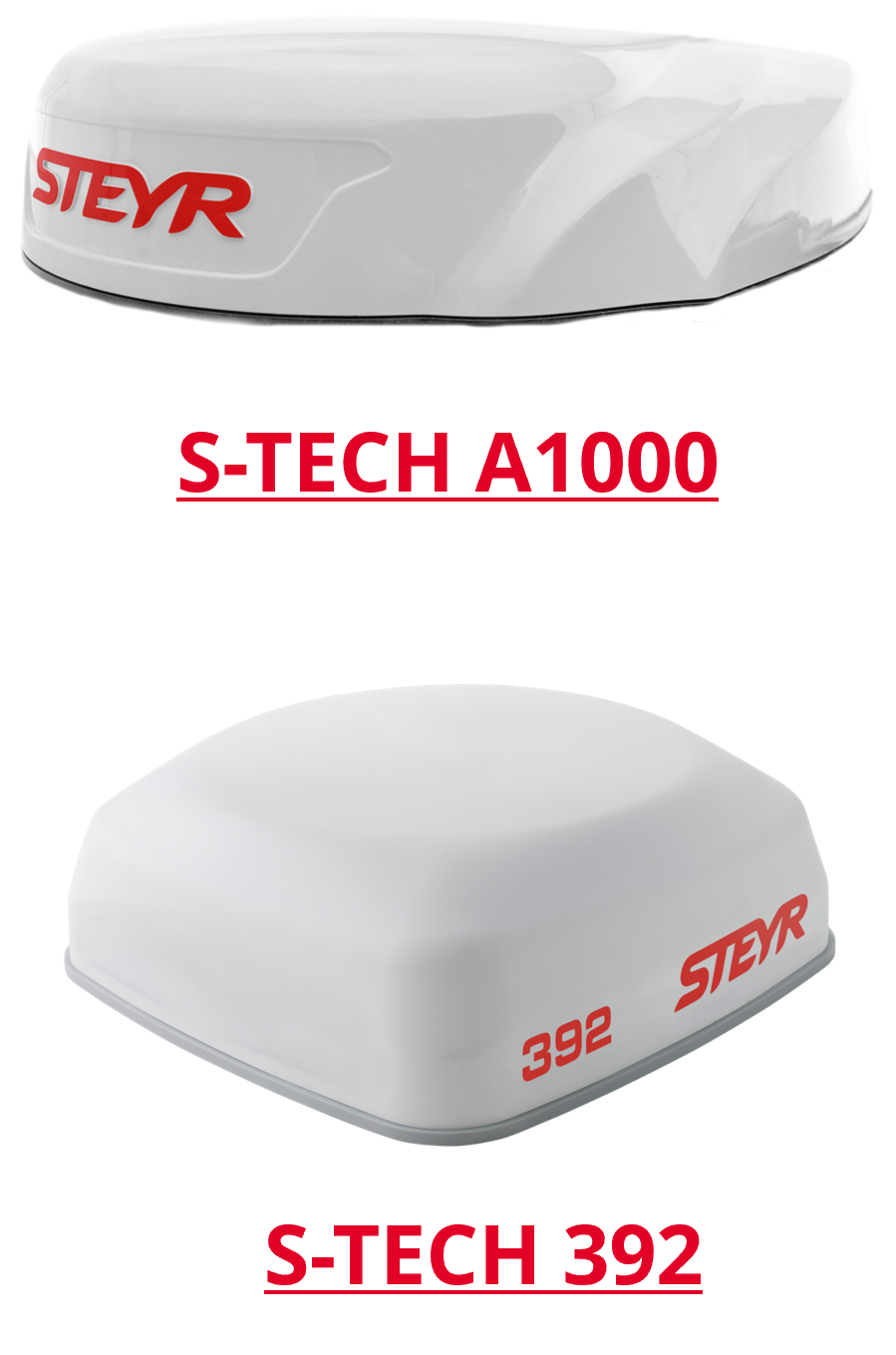

Receivers




APPLICATIONBASE ACCURACYMEDIUM ACCURACYHIGH ACCURACY
YIELD MAPPING✔✔✔
HARVESTING✔
✔✔
VRA SPREADING✔
✔✔
VRA SPARYING✔
✔✔
TILLAGE✔
✔
✔
AUTOMATED STEERING✘
✔
✔
CORN HARVEST✘
✔
✔
SPRAYING WITH SECTION CONTROL✘
✔

✔
SPREADING WITH SECTION CONTROL✘
✔
✔
PRECISION SEEDING✘
✘
✔
STRIP TILLAGE✘
✘
✔
CONTROLLED TRAFFIC FARMING✘
✘
✔
FIELD LEVELLING✘
✘
✔
DRAINAGE✘
✘
✔
IN-CROP WEEDING✘
✘
✔

✔ Recommended

✘ Not recommended

S-TECH RTK+

Ultimate precision with S-TECH RTK+

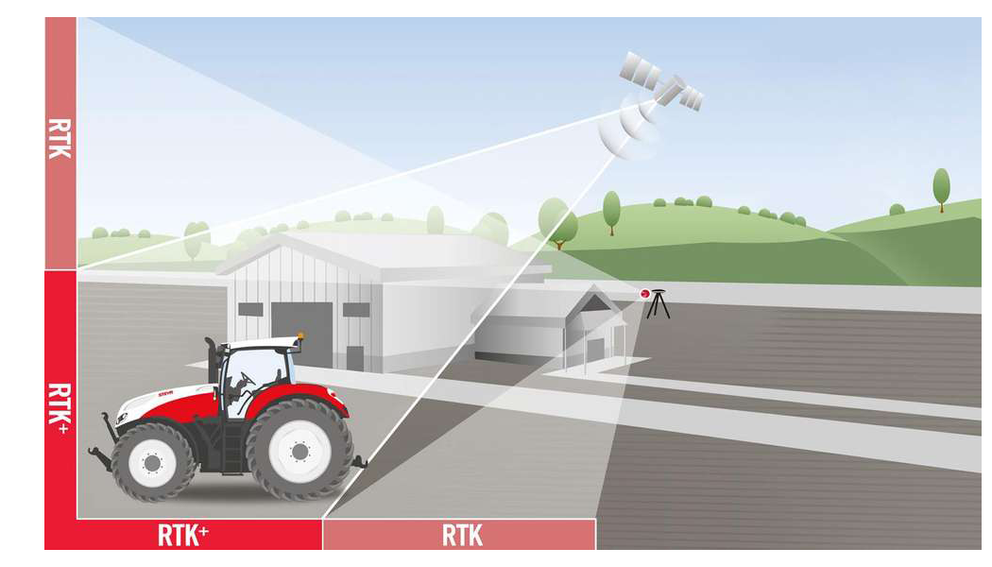

RTK+ (Real Time Kinematic) is the top-end technology that ensures a fast, dependable signal and maximum accuracy in all conditions, regardless of field location. For the ultimate precision an additional wireless correction signal from a mobile communications network, with the modem fixed to the tractor and a range of up to 30 km, provides the technology you need.

S-TECH RTK+ Benefits

Cost-savings

Keeping work as parallel as possible means lower fuel costs, reduced inputs of seeds, fertilizers and plant protection products, and a reduction in time needed to get the job done.

Efficiency

The accuracy and fast connections everywhere and at any time reduce application overlaps and skips allowing more accurate placement of inputs, including fertilizer and herbicides.

Simplicity

You have a single contact for your hardware and correction signal. Enjoy also the flexibility in a single subscription for unlimited access, compatible with all hardware.

Repeatability

RTK+ ensures repeatability even in the narrowest rows for a better control field traffic, keep tire tracks on the same path and reduce compaction.

No Signal Interruption

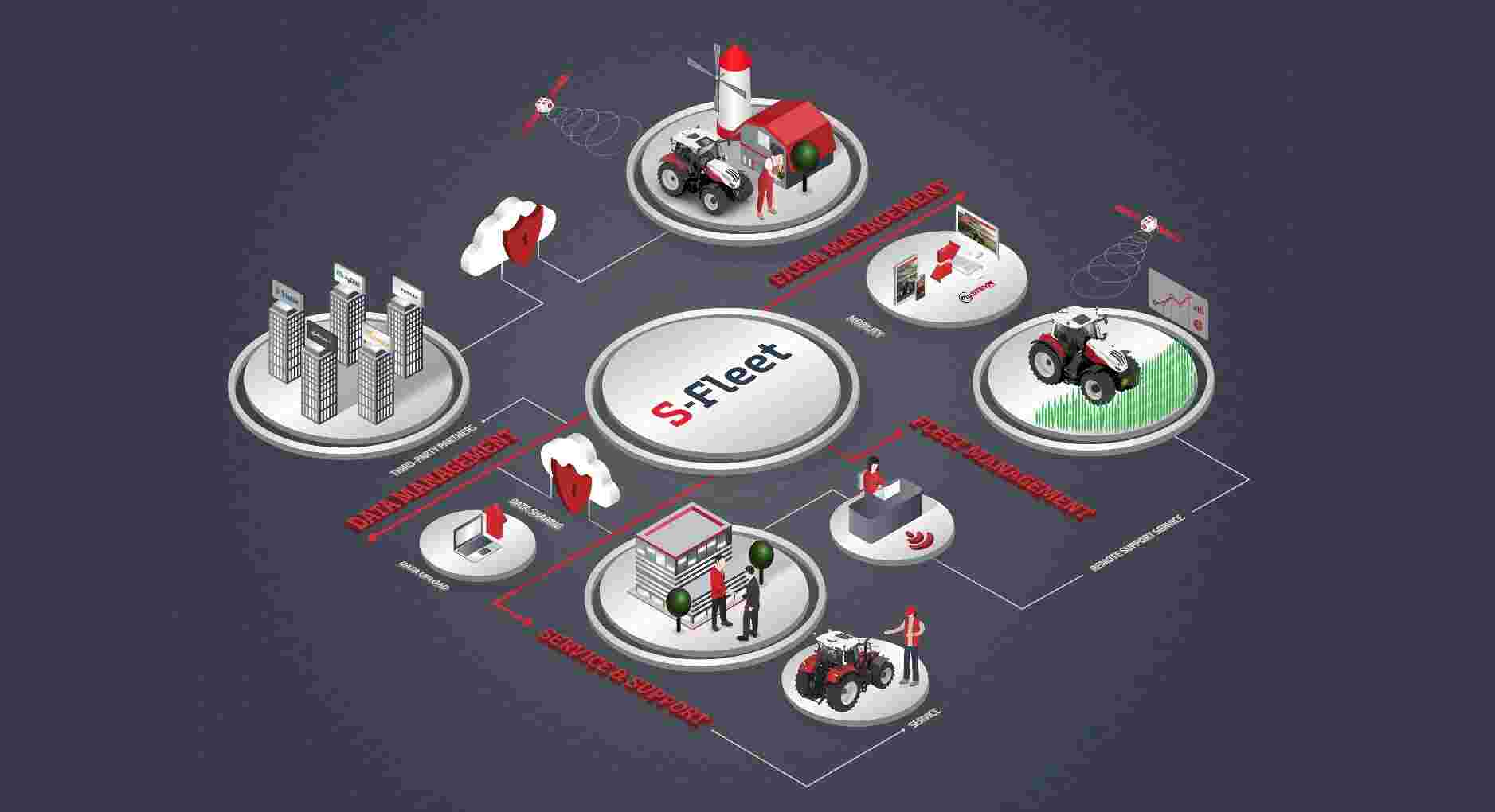

The STEYR S-Fleet RTK+ solutions allow you also to maintain centimeter-level accuracy indefinitely when faced with interruptions due to challenging terrain or poor cellular service.

The signal losses can be bridged for up to 20 minutes as soon as the machine starts up. Just keep going without interruption – and maintain ultimate precision.
