Guidance and Steering

Adopt STEYR autoguidance and steering systems, and reduce skips and overlaps, save on fuel and labor costs and simplify operation.

Accuguide


Repeatable accuracy to fit the way you farm

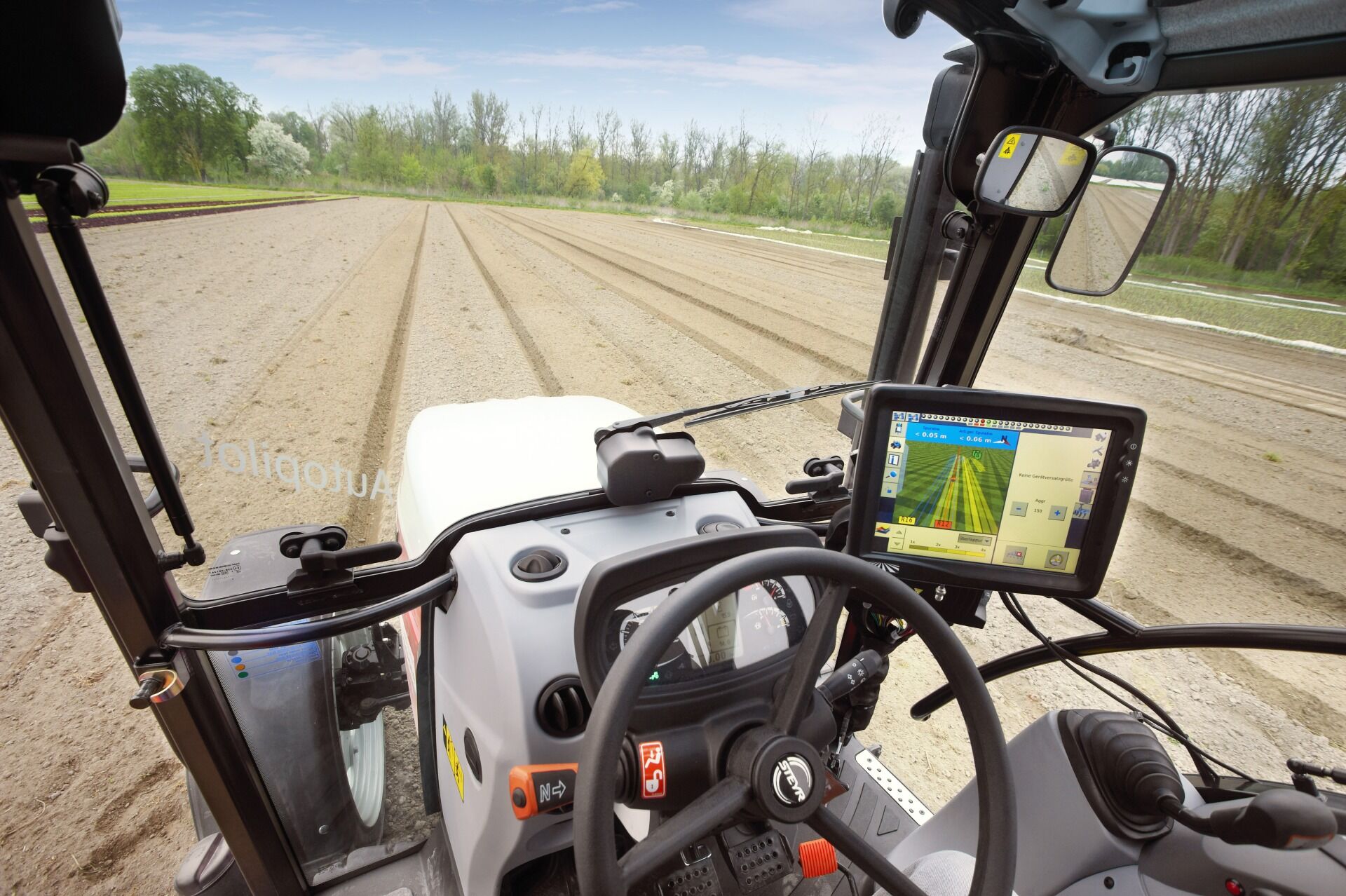

The fully-integrated S-Guide guidance system helps you complete your field work and improve your agronomic performance. It ensures pass-to-pass accuracy and reliability, regardless of the season, operation or patterns to reduce overlaps and skips.

The ultimate flexibility. Six guidance patterns are offered for the ultimate in guidance flexibility, allowing you to work in different patterns and shapes that best fit your operation’s field layouts and contours: Straight, Heading, Curved, Spiral, Field and Circle.

Seeding Benefits

  • Reduce seed costs through minimized overlap
  • Higher operator comfort – increased and longer concentration


Spraying & fertiliser Spreading Benefits

  • Reduce overlaps
  • Save up to 5% on fertilizer and pests


Harvesting Benefits

  • Higher concentration on optimizing the performance of a combine
  • Unload on-the-go and concentrate fully at the trailer
  • Faster headland turns by taking every second or third pass.


Depending on the tractor model and which monitor it is equipped with you have two possibilities to have S-Guide:

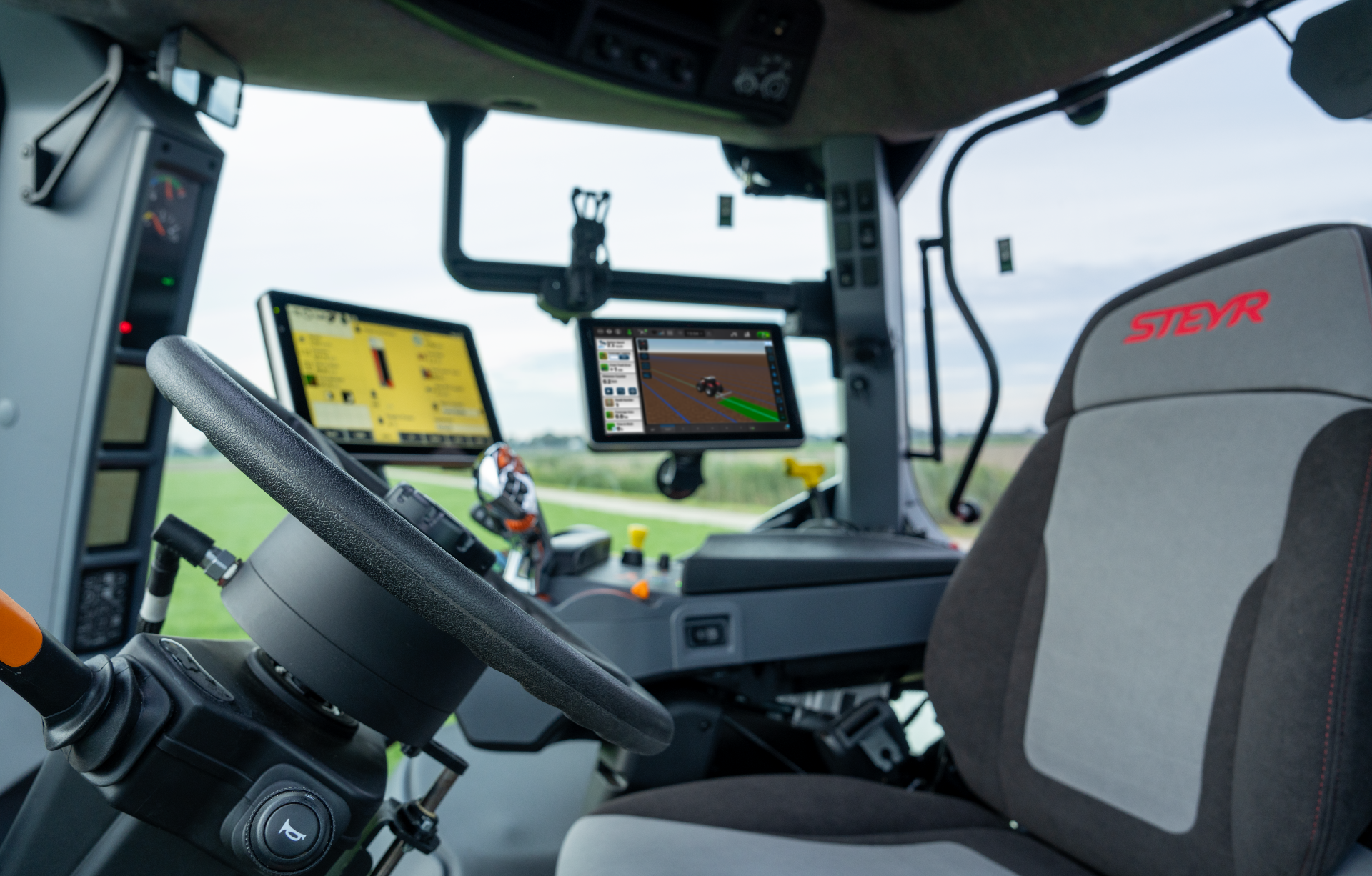

Steyr Infomat 1200 Guidance Kit

A common user experience between integrated and

​aftermarket guidance systems by enabling legacy

​machines and other vehicle platforms

The high-resolution Infomat 1200 display in combination with the S-Tech A1000 guidance controller and a Processing & Connectivity Module (PCM), previously known from all S-Tech Connect series, is compatible with older machine models as retrofit solution " Steyr Infomat 1200 Guidance Kit".

Key Benefits

  • Straight and repeatable rows with fully integrated hands-free assisted steering
  • Increased productivity due to fewer passes across the field and faster headland turns.
  • Less unnecessary overlap.
  • Reduced variable input costs such as labor and fuel.
  • Same working speed even under difficult conditions such as dust, darkness or fog.
  • Operator relief and less fatigue, allows the driver to concentrate more on the machine‘s performance instead of the path of travel ahead of him.
  • Allows even inexperienced (casual or seasonal) drivers to operate the machine efficiently.
  • High operator comfort during extended working hours and night shifts.

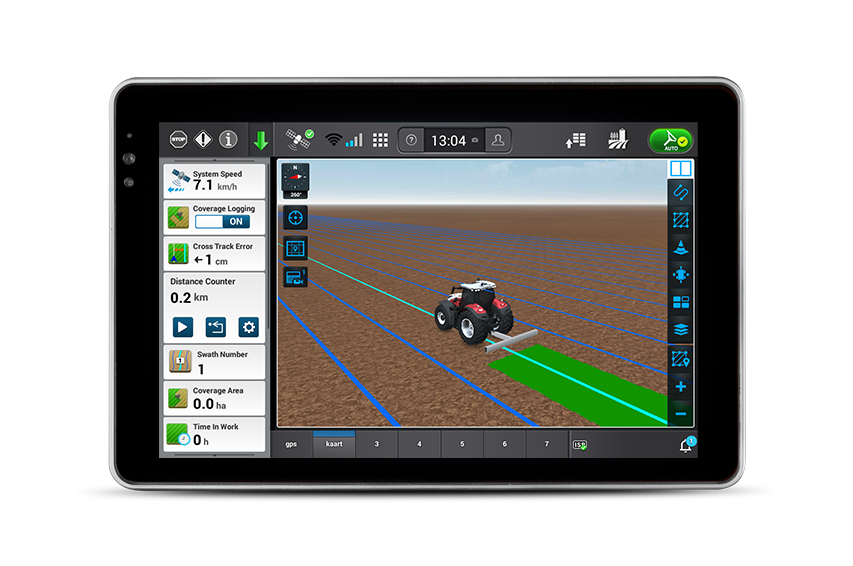

Infomat 1200

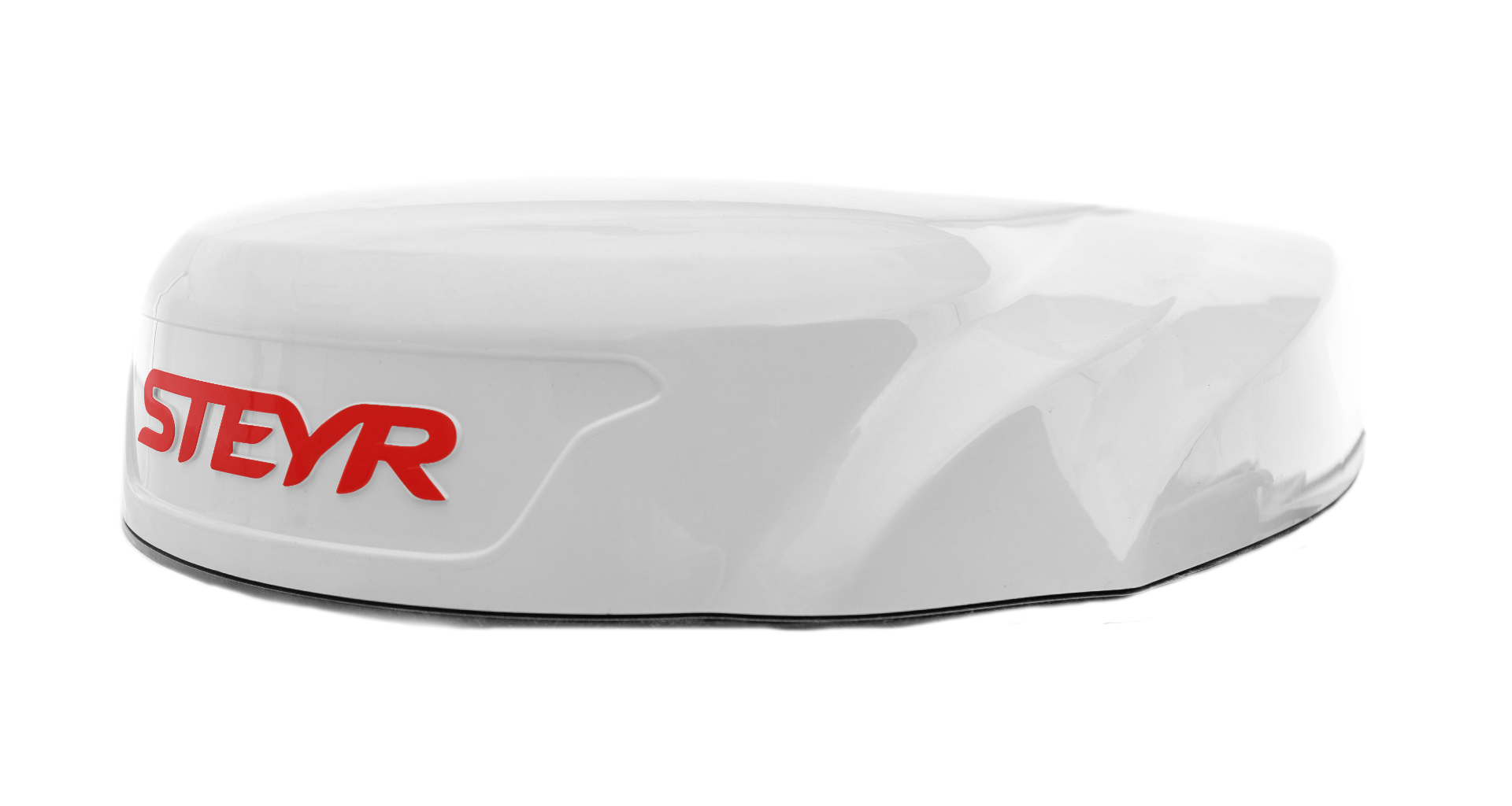

​S-Tech A1000

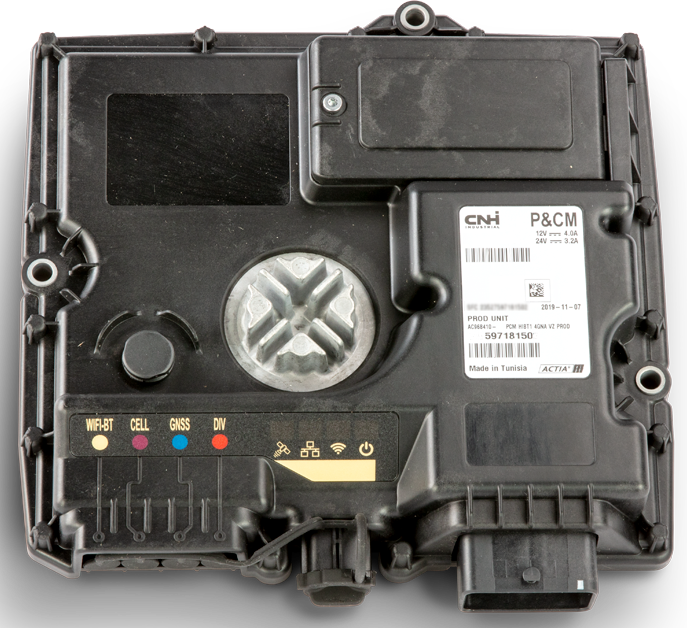

P&CM

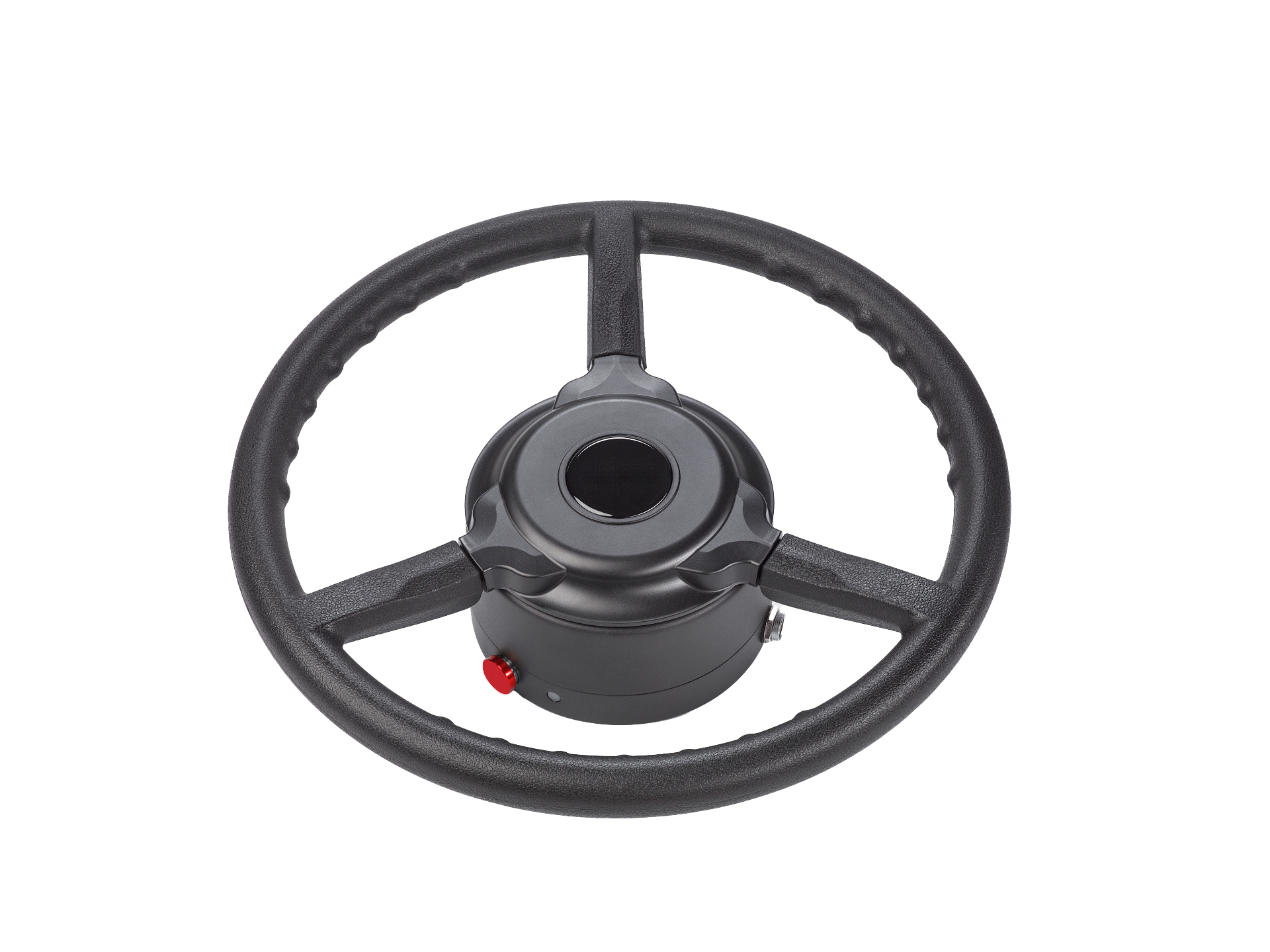

DirecSteer


Steyr Guidance & Steering product comparaison


S-Guide™ -
S-Tech 1200		S-Tech 1200 Guidance Kit - HydraulicS-Tech 1200 Guidance Kit - Electric
Display / UI / Product Offering


Modern User Interface (Tablet/Phone Style Operating System)✔✔✔
12" Color Touch Display✔✔✔
High Resolution ✔✔✔
Common CNH User Experience with Factory Fit Solution (CNH Eco-System)✔✔✔
Multi-Touch Screen (Pinch/Scroll/Swipe)✔✔✔
Machine Control Application for CNH Vehicles✔✘
✘
Load and View Op Manuals (PDF) on Display✔✔✔
Key Functions Lock Outs based on Level of User Profile✔✔✔
Rotary Encoder (Swipe Between Run Screens/Capture & Move Adj Sliders)✔✘
✘
Expandable Mini UDW's to Full Screen UDW✔✔✔
4 Camera Capable with Independent Inputs✔✔✔
Direct Return to Run Screen from any Configuration Window✔✔✔
8-9 Configurable Armrest Shortcut Buttons✔✘
✘
Screen Capture✔✔✔
 Radio / Phone Controls through Display✔✘
✘
GNSS


Multi Frequency / Multi Constellation (GPS, Glonass, Galileo, Beidou, QZSS)✔✔✔
5 min PPP Convergence Time✔ (AFS3)✔ (AFS3)✔ (AFS3)
Geodetic Datum Position Match – Matching On-Ground Position of competitive systems that use different Datums ✔✔✔
Relative Positioning✔✔✔
Position Offset✔✔✔




Guidance


Hydraulic Autoguidance✔✔✔
CNH Guidance Patterns / Path Generation✔✔✔
Trimble / Deere  AB Line Path Generation✔✔✔
Tightly Integrated GNSS / IMU (High Guidance Performance Enabler)✔✔✔
Towed Implement Path used for End of Row Turn Path✔✔✔
8 End of Row Turn Types (Autoselect most efficient turn by display)✔✔✔
Guidance Control Panel integrated with 3D Map✔✔✔
MultiSwath Selectable Recording Point (Implement or Tractor)✔✔✔
MultiSwath Recording Point based on modeled towed implement position✔✔✔
Separate GNSS Accuracy Warning / Engage Thresholds✔✔✔
Integration with Headland Sequence✔✘
✘




Map


3D Map Images✔
✔
(CNH Vehicles)		✔
 (CNH Vehicles)
High Def Screen✔✔✔
Side by Side Maps on Single Run Screen✔✔✔
Towed Implement Path Modeling used for Coverage✔✔✔




ISO UT/TC


UT✔✔✔
Task Controller✔✔✔
Application Control Diagnostics✔✔✔




Data Management


ISO XML File Format✔✔✔
Data stored on hardware (USB Card not req'd for operation)✔✔✔
Data Tree used to select / edit specific data (Export, Copy, Delete, etc)✔✔✔
Implement Set Up Available for Import/Export on USB✔✔✔




Data Transfer


Vehicle Telemetry (CAN) Data to CNH Cloud✔✔✔*
Agronomic Data Transfer to S-Fleet Cloud✔✔✔
Data Plan Inclusion in Subscription✔✔✔




Remote Service


Remote Sofware Updates (PF Components + Vehicle Controllers)✔✔
(PF Components)		✔
(PF Components)
Remote Diagnostics (Vehicle Controllers)✔✘
✘
Remote Display Viewing✔✔✔




Specialty Applications


In Field Data Sharing (AccuSync)✔✔✔
